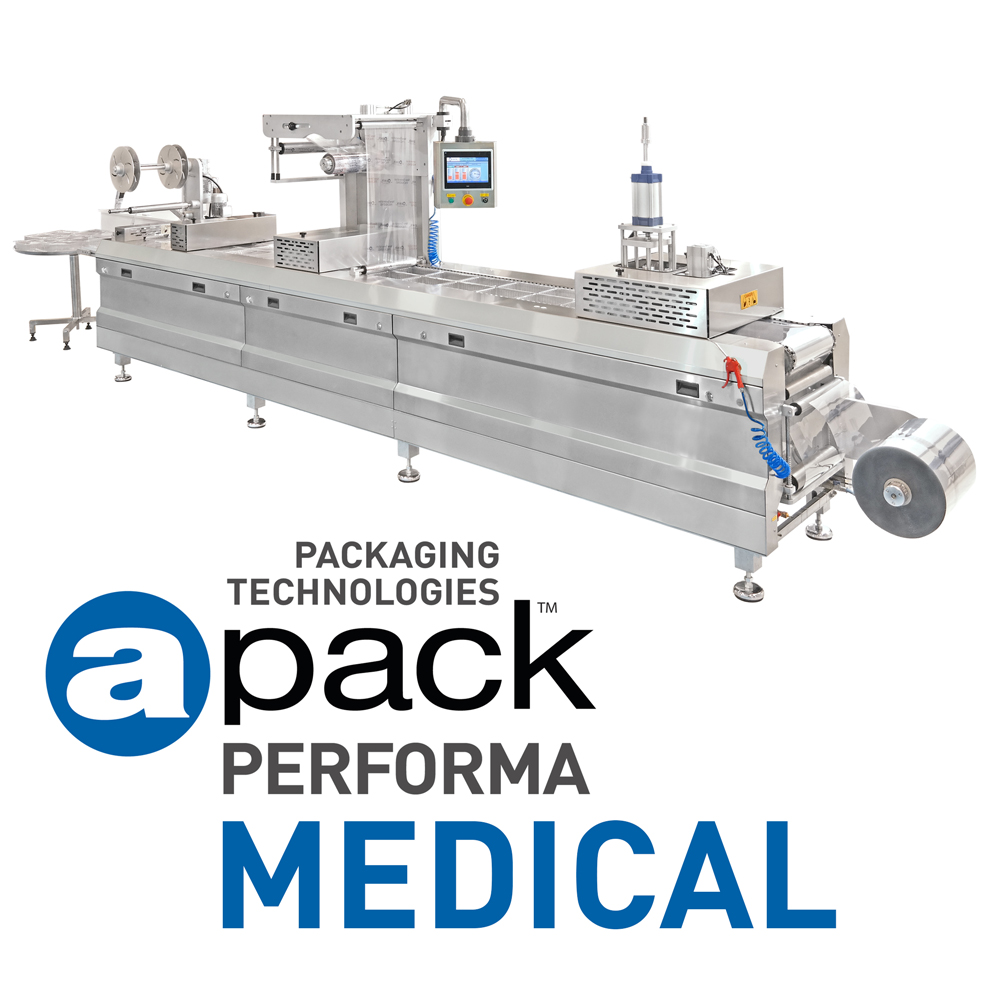

perFORMA MEDICAL

Single or Set Medical Disposable Supply Packaging Machine

The packaging of medical products has always been important. But it has become even more important due to what happened during the Covid-19 pandemic days. When health is involved, very high hygiene, sterilization, microbial interaction criteria are brought to all productions. It is necessary not to get infected while trying to gain healing. This requires that all medical production processes be carried out in facilities with high standards, with machines suitable for health conditions.

APACK has gained considerable experience over time mainly in food packaging. Believing that food packaging machines should also have high health standards, we have attached great importance to this issue in the design of our machines. All of the stainless surfaces, screws, nuts, buttons, cables used were prepared in accordance with these criteria. Meanwhile, we worked on special projects for the packaging of medical consumables.





When there was an extraordinary increase in demand for some medical supplies due to the Covid-19 outbreak, our investors also paid close attention to this issue. Suddenly, orders for medical packaging machines started to pour down. In particular, there was a demand for SWAB test kits.

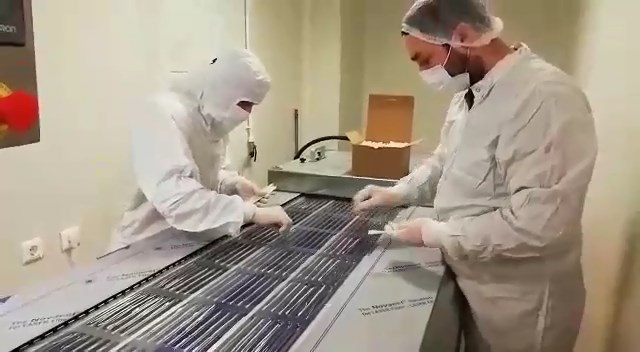

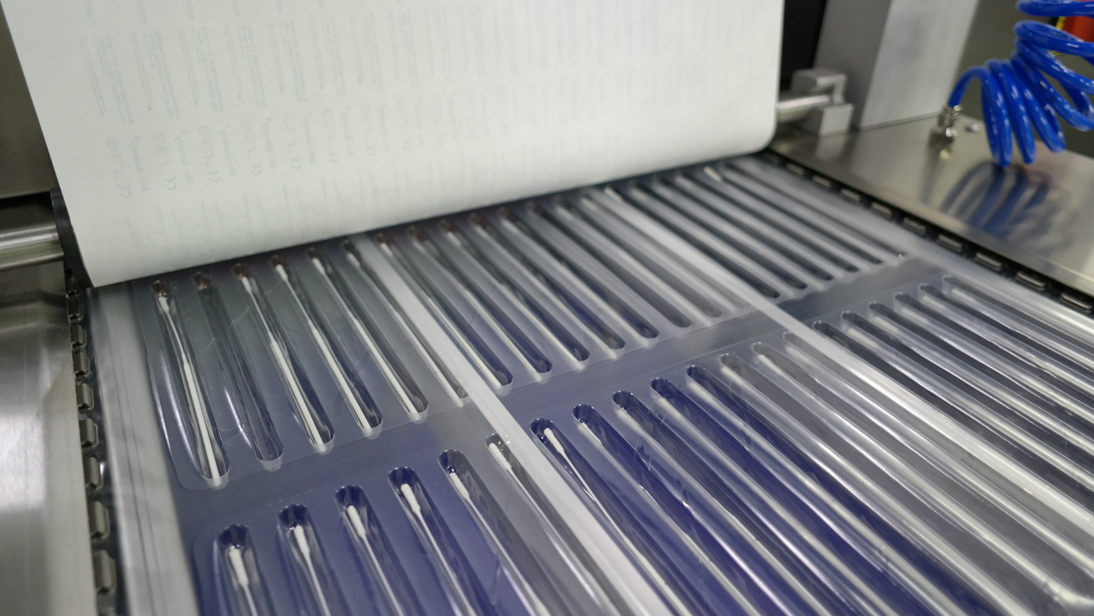

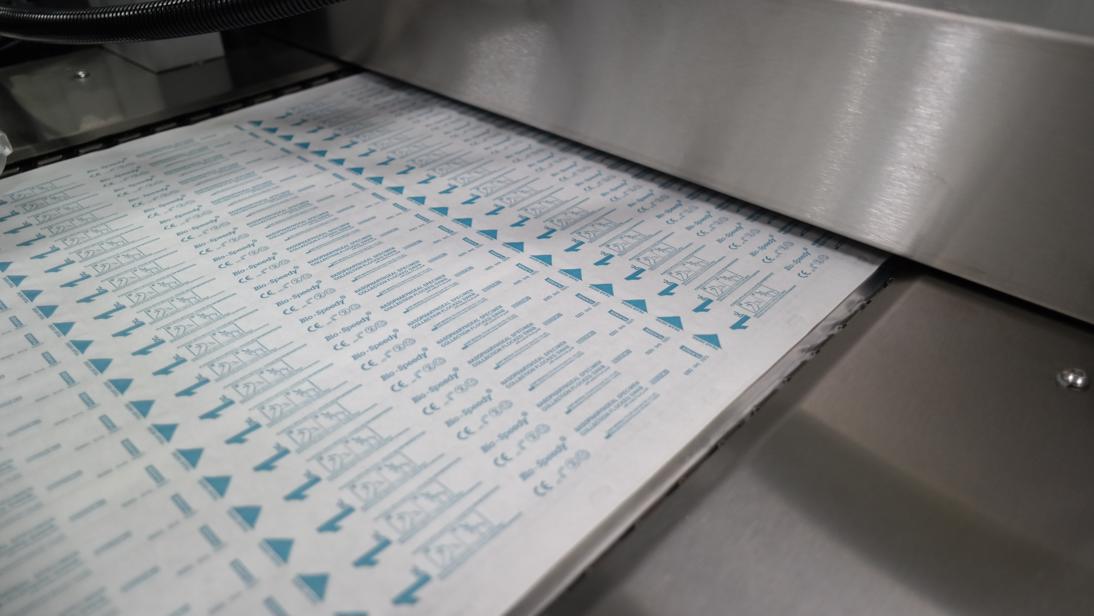

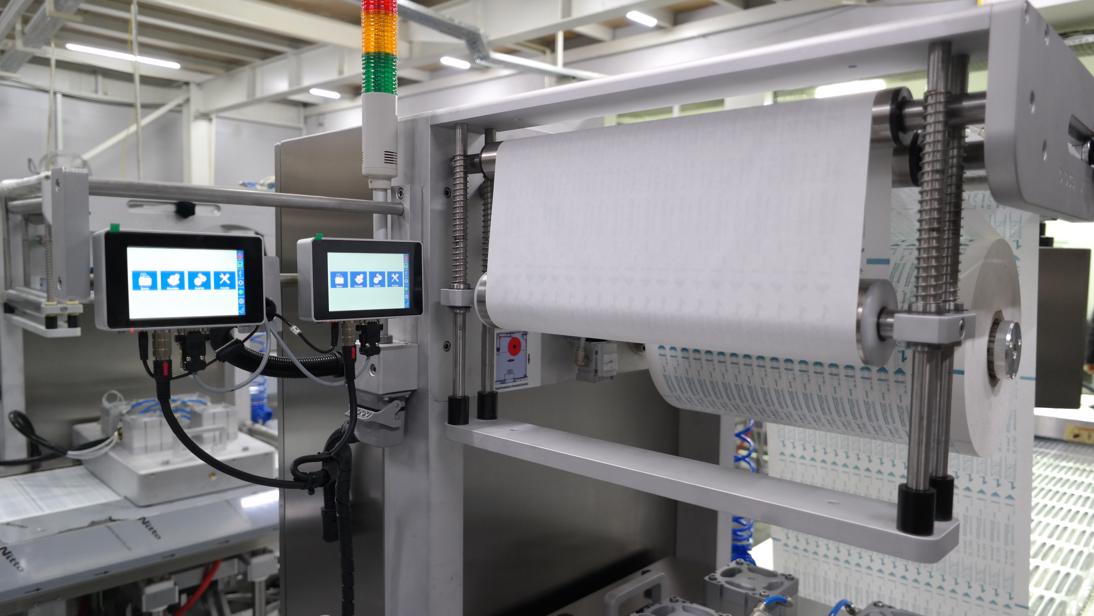

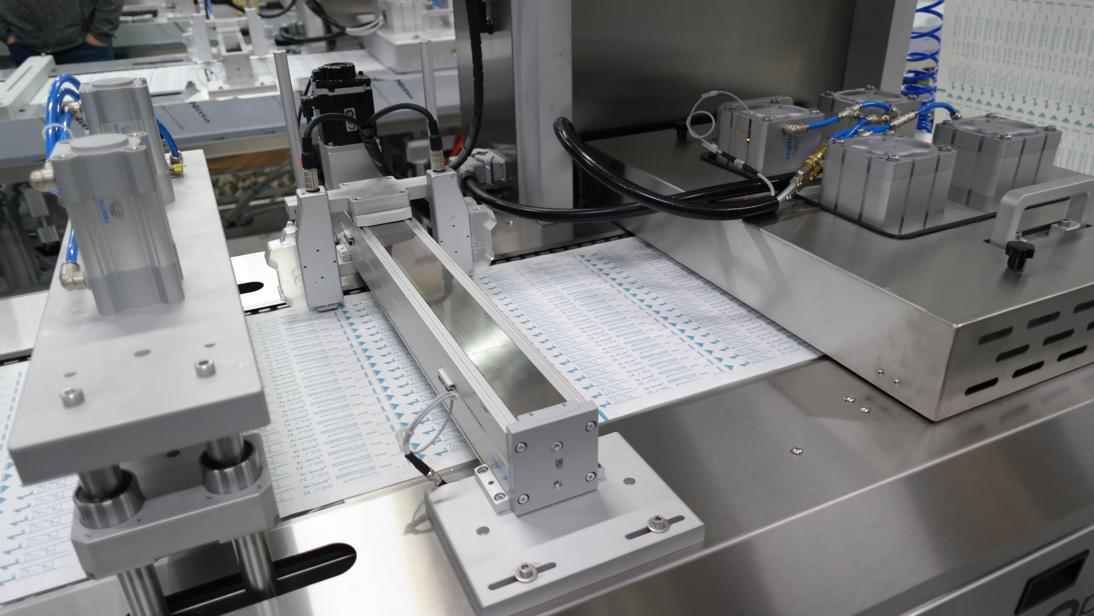

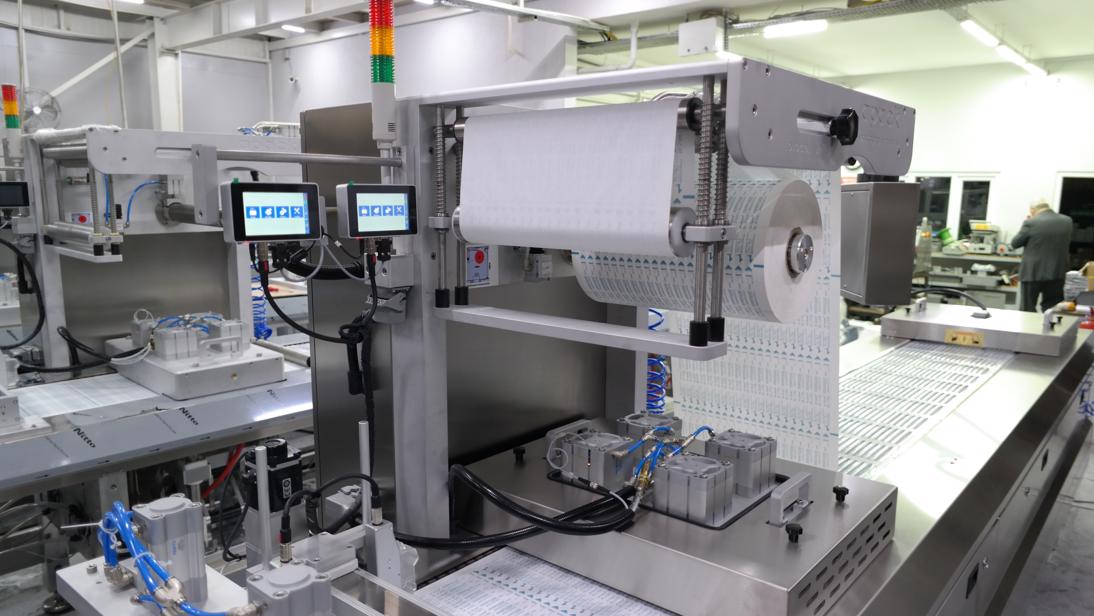

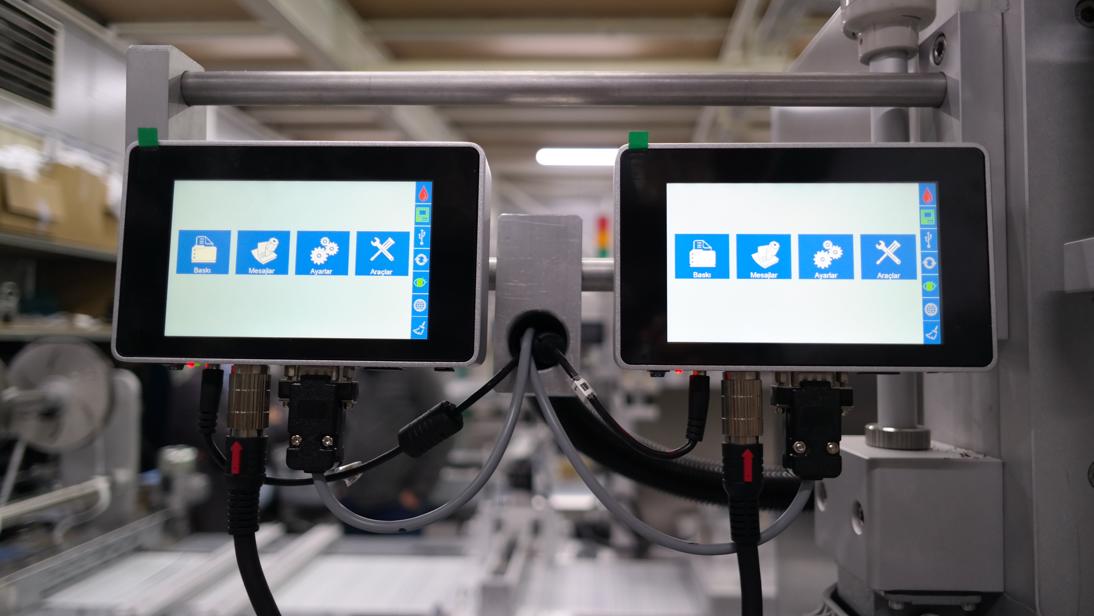

Generally, thermoform-style machines are used for the packaging of medical disposable supplies. However, when special tubes and test material packaging is required, especially for laboratory test kits, plate sealing machines should be used instead of thermoforming. Since medical consumables are sensitive products, manual filling is preferred instead of automatic filling. However, all remaining packaging stages are carried out automatically. After the product is closed, expiration date and barcode information are printed on special printers. All medical products are absolutely sterilized and shipped to the medical market after the production phase.

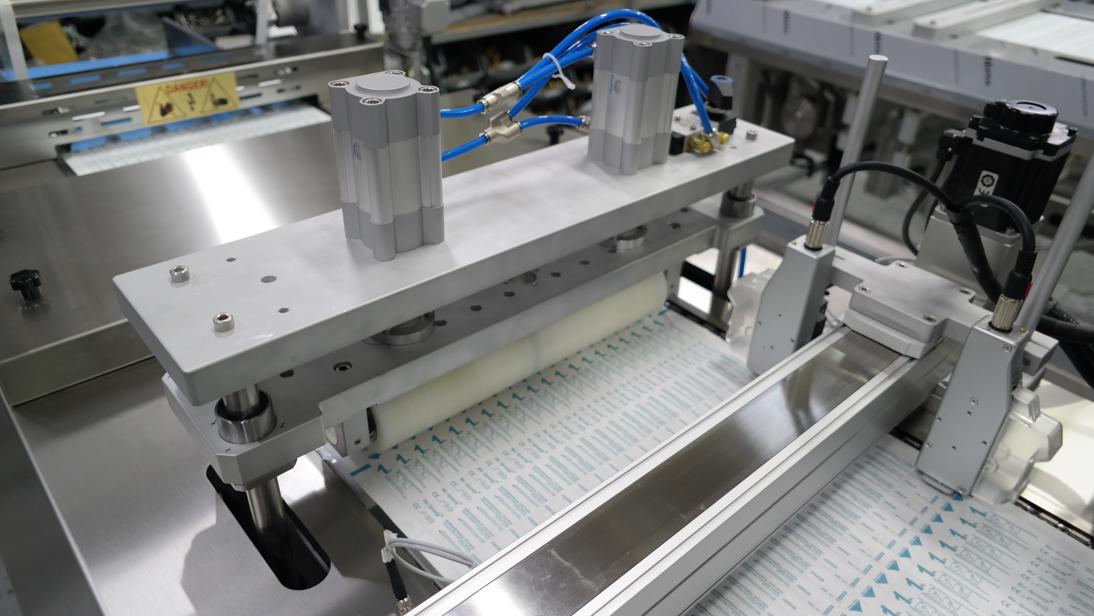

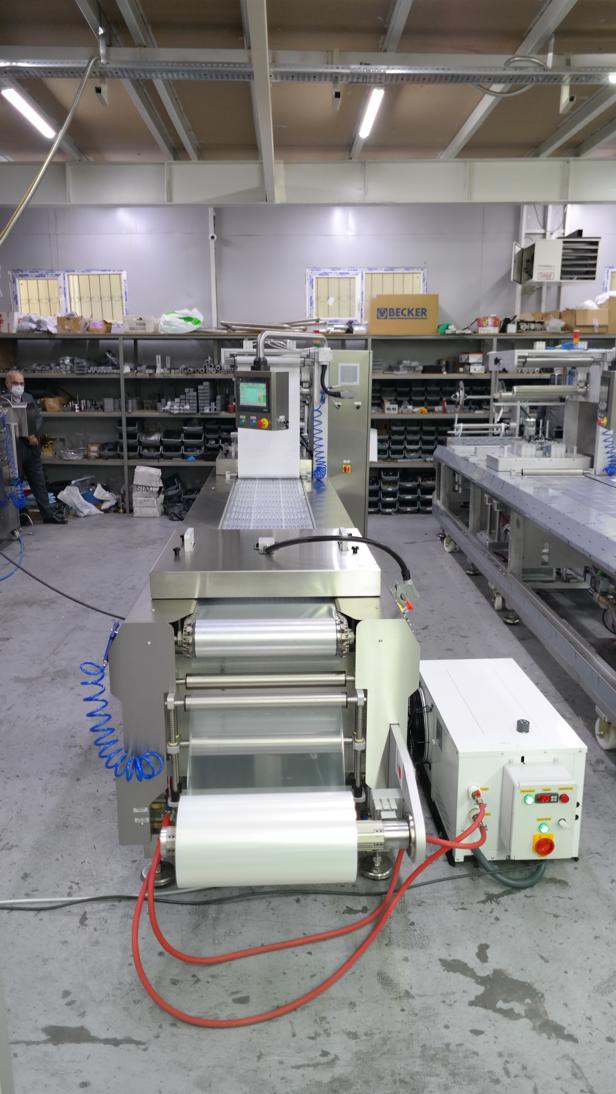

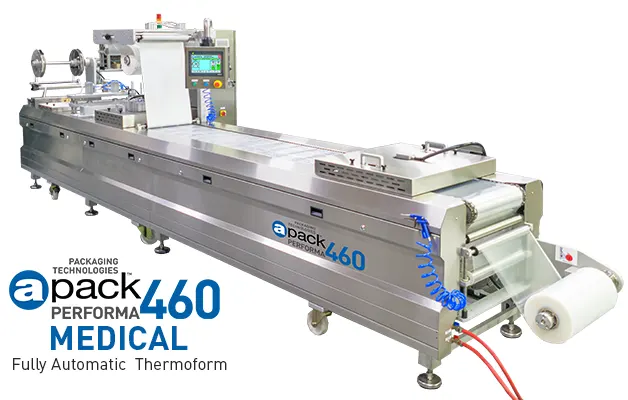

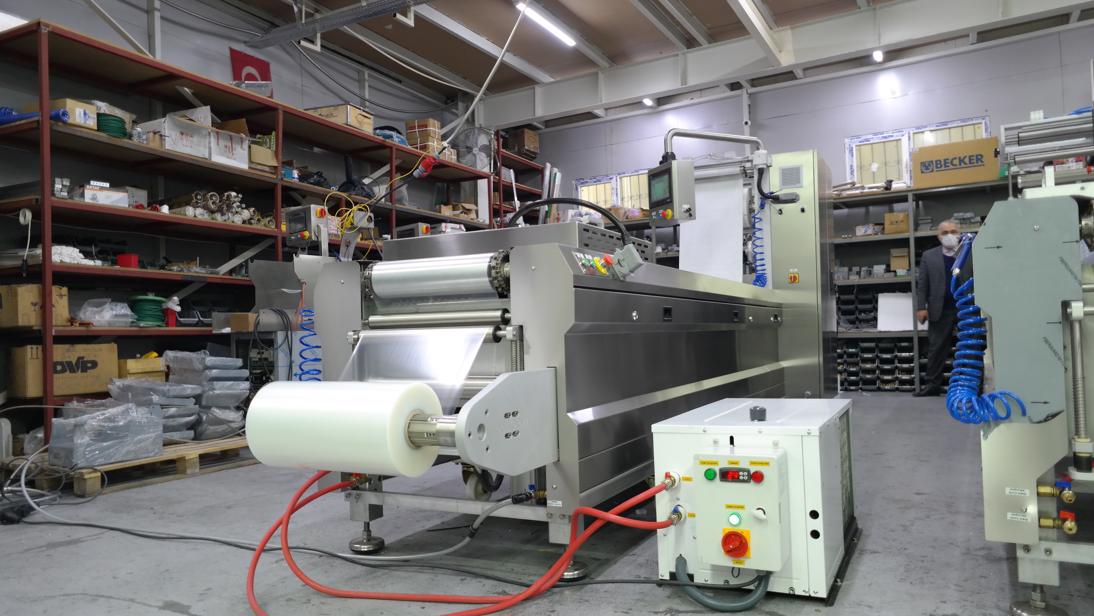

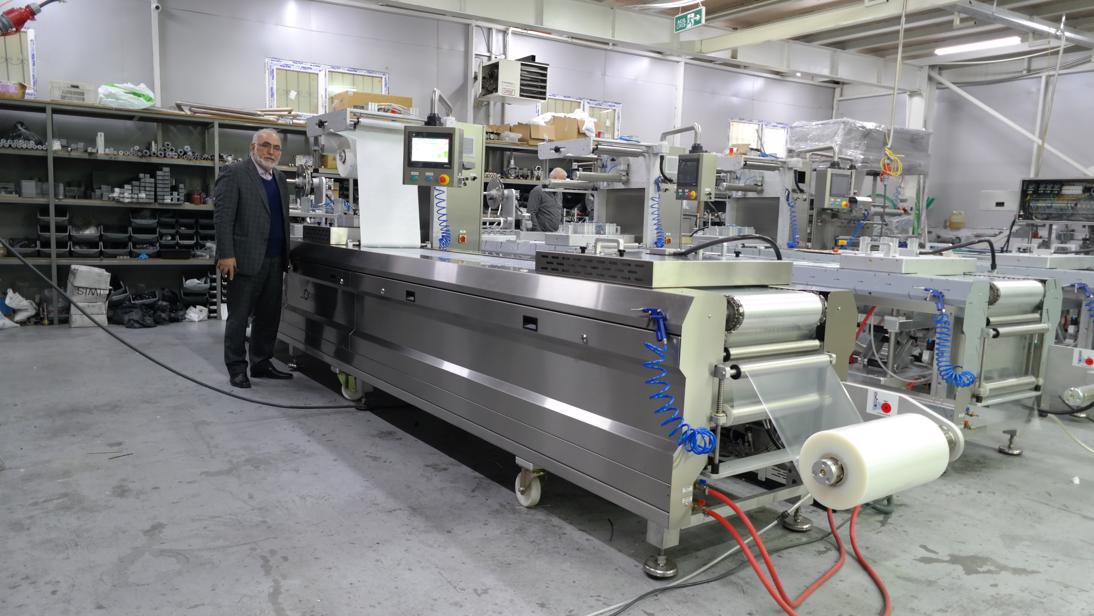

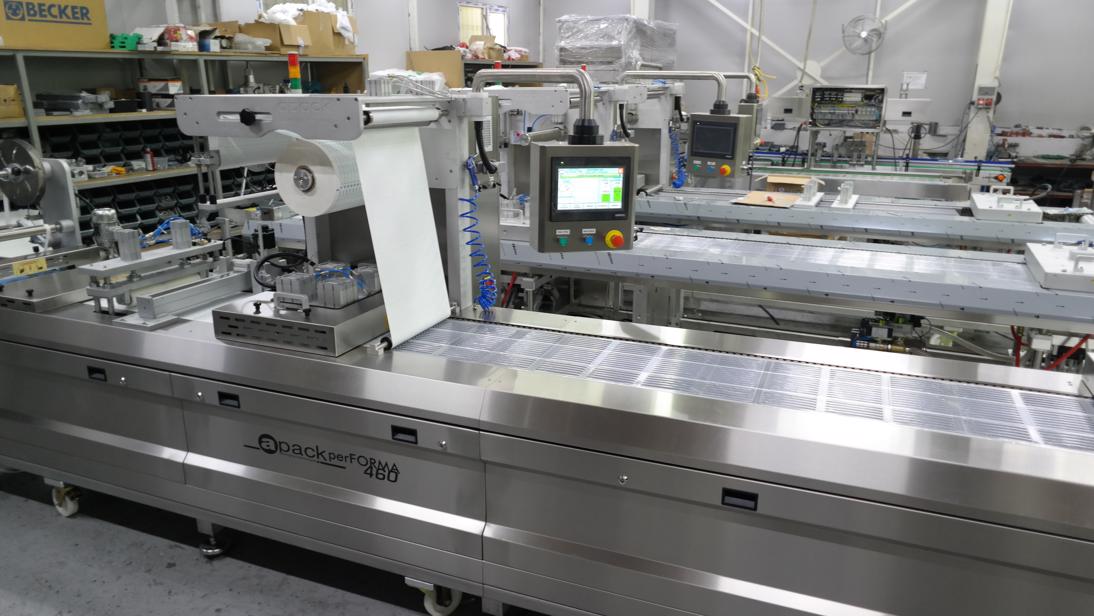

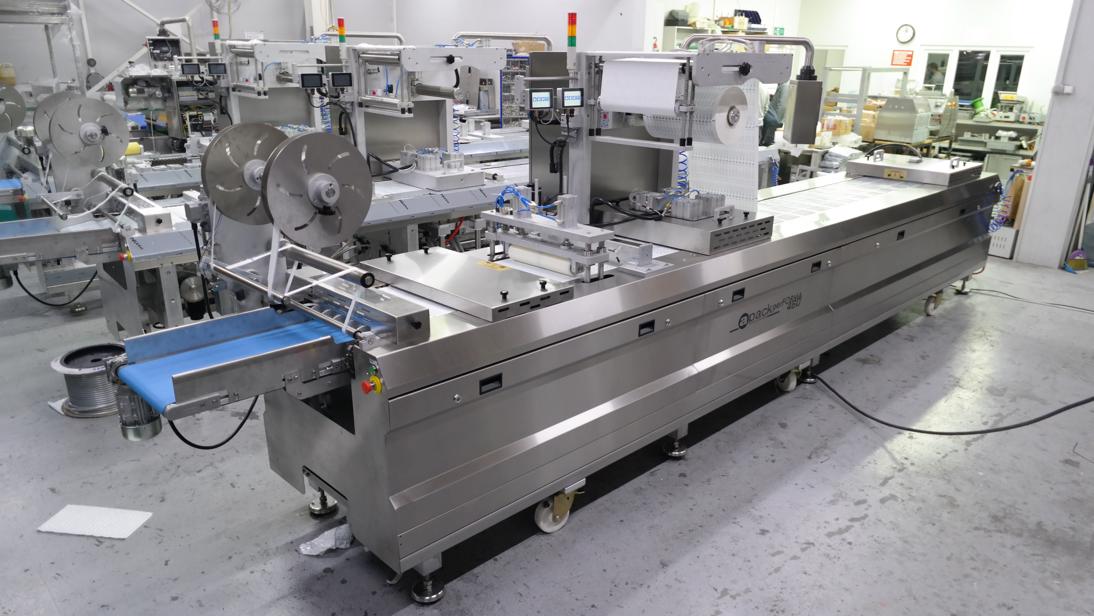

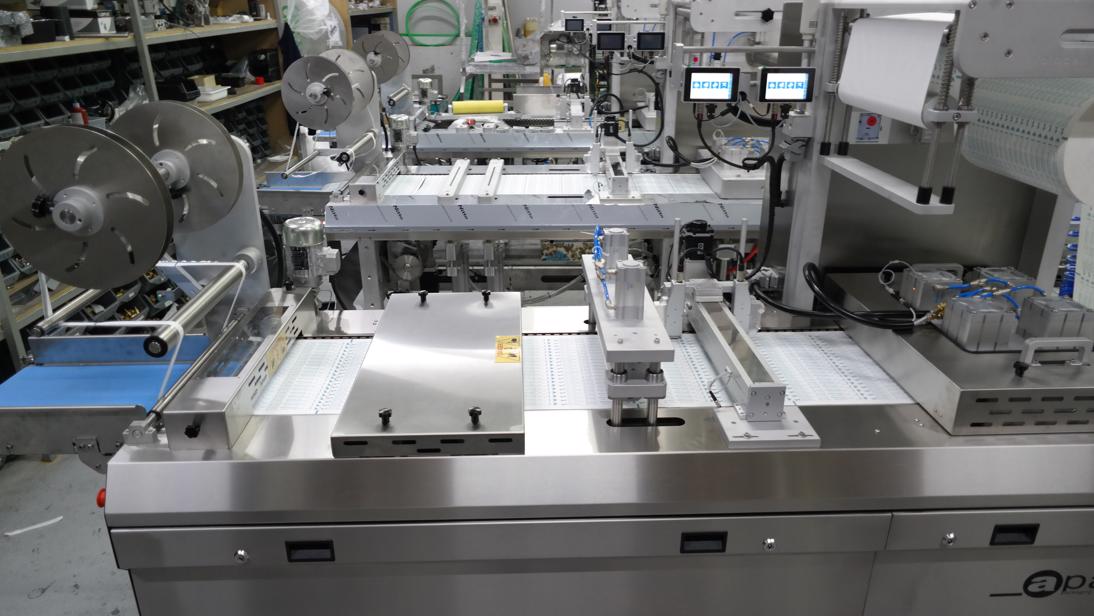

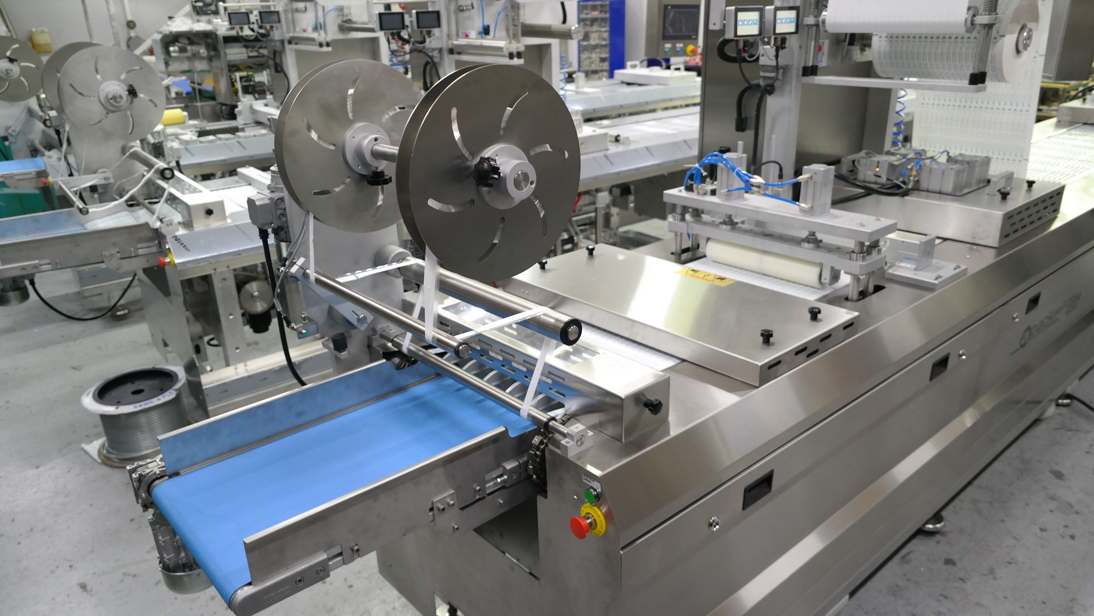

The perFORMA series thermoforming machine is produced using AISI 304 grade stainless steel with low microbial retention. Moreover, we use thicker profiles than our competitors. Electric and pneumatic materials are supplied from the best quality brands in the world market. We produce a very solid, very high quality machine that can work 24/7.

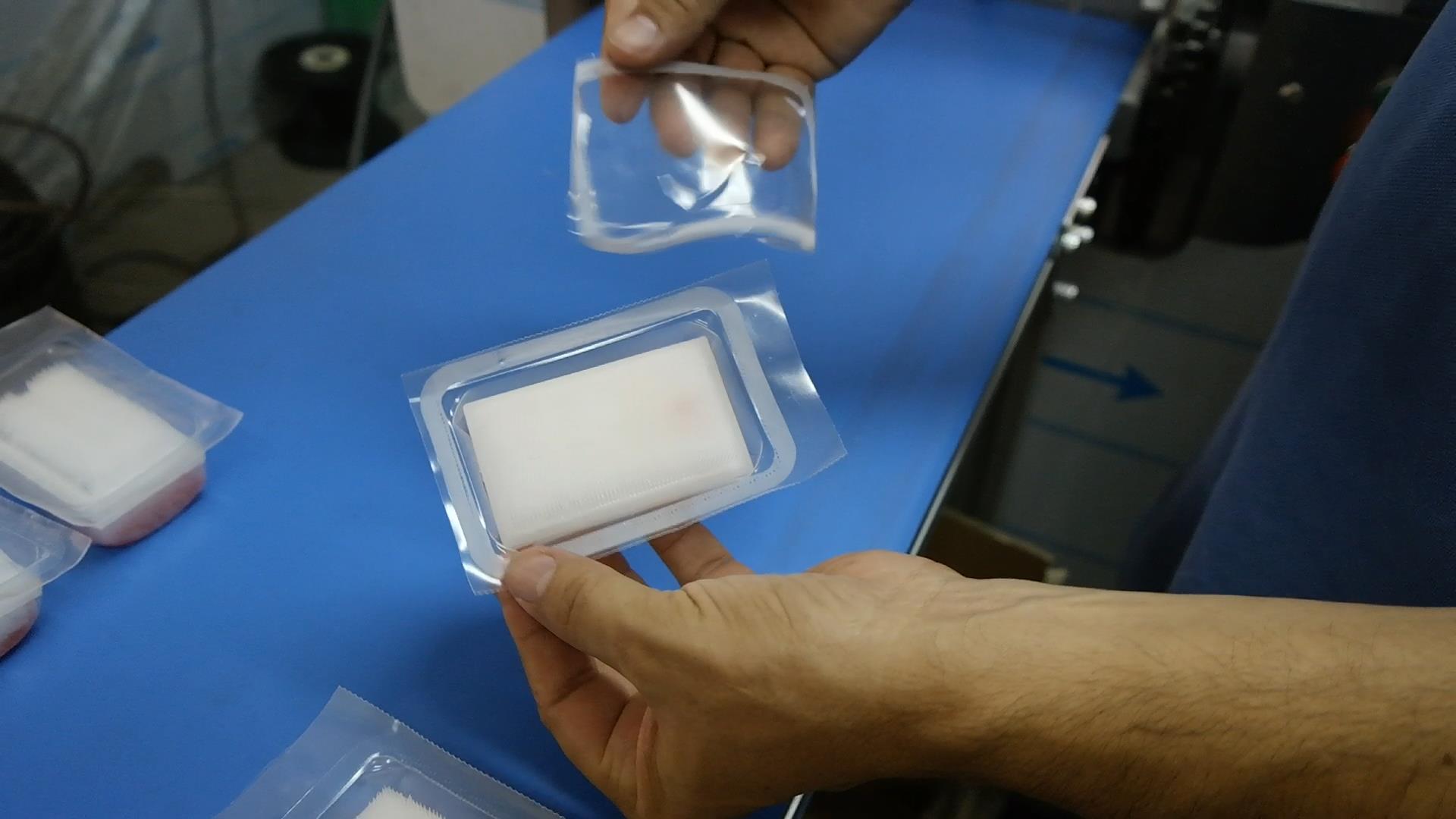

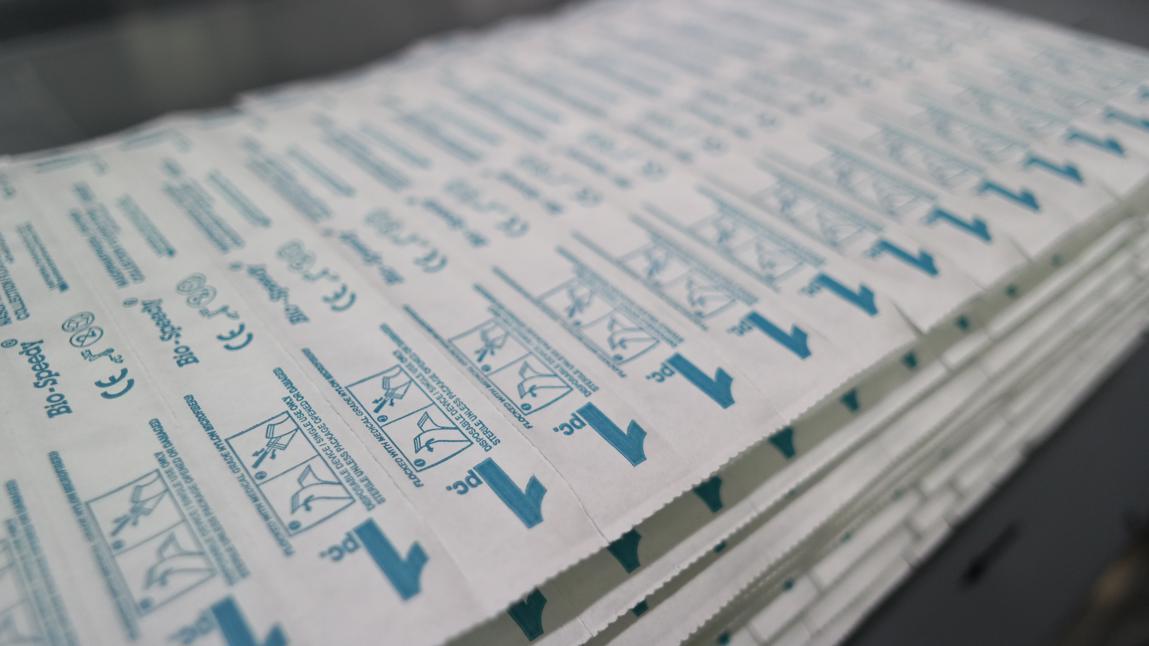

With the perFORMA Series thermoforming packaging machines, test kits, dressing sets, surgical gowns, gloves, caps, etc. can be made in disposable consumable packaging. In addition, it also meets the conditions of the day in the packaging of medical products such as disposable syringes, serum tubing, health support machine kits, laboratory test materials etc.

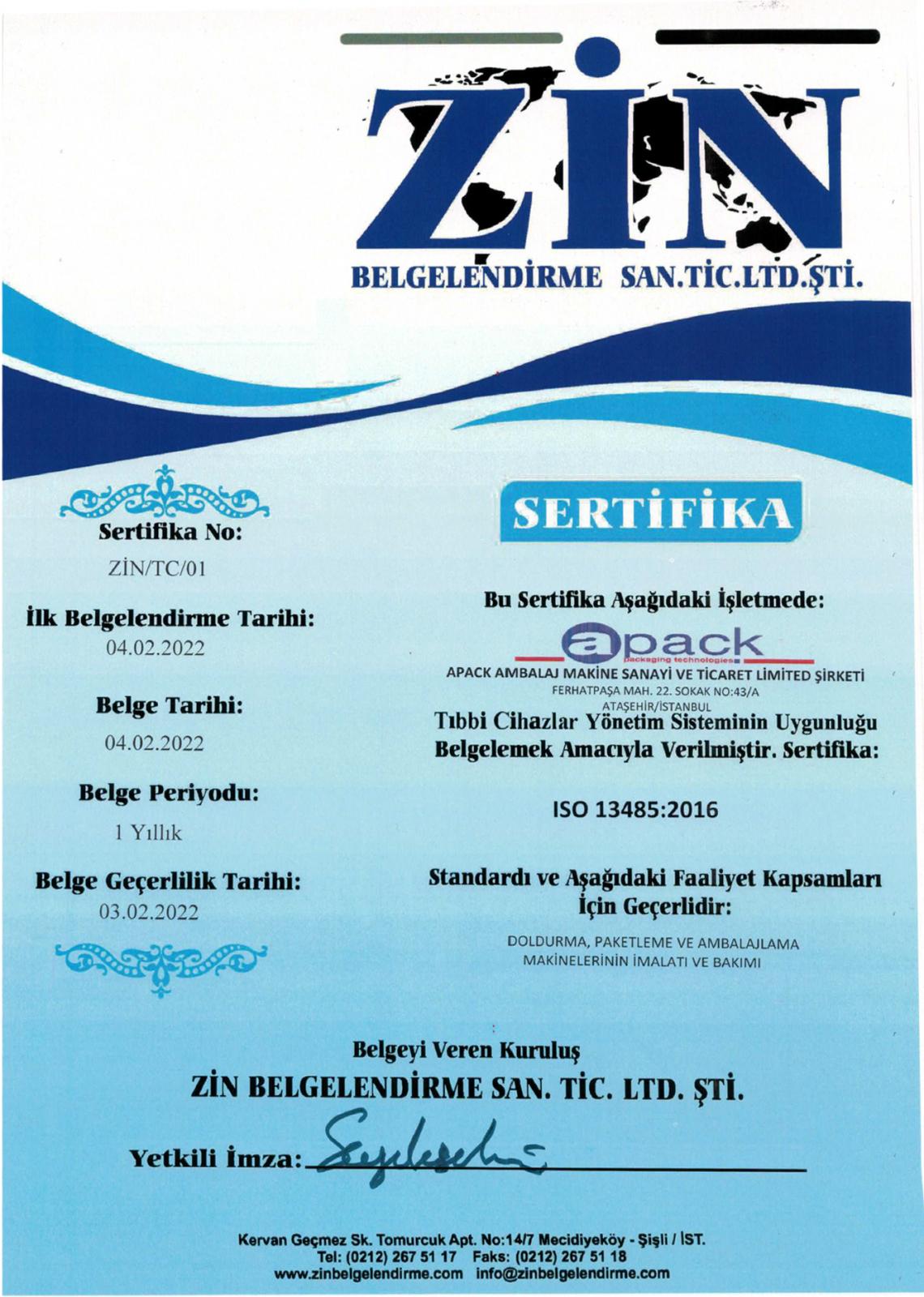

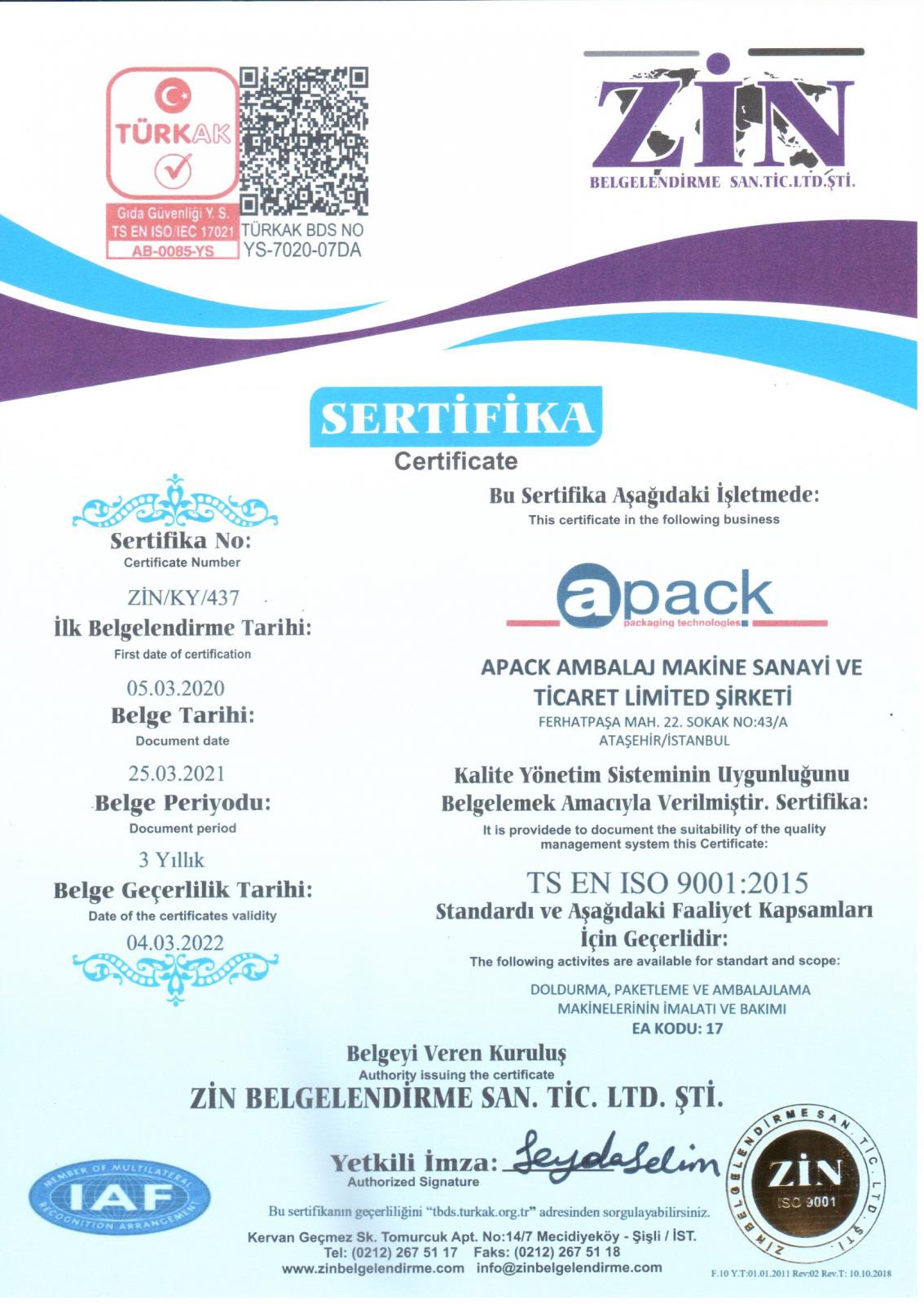

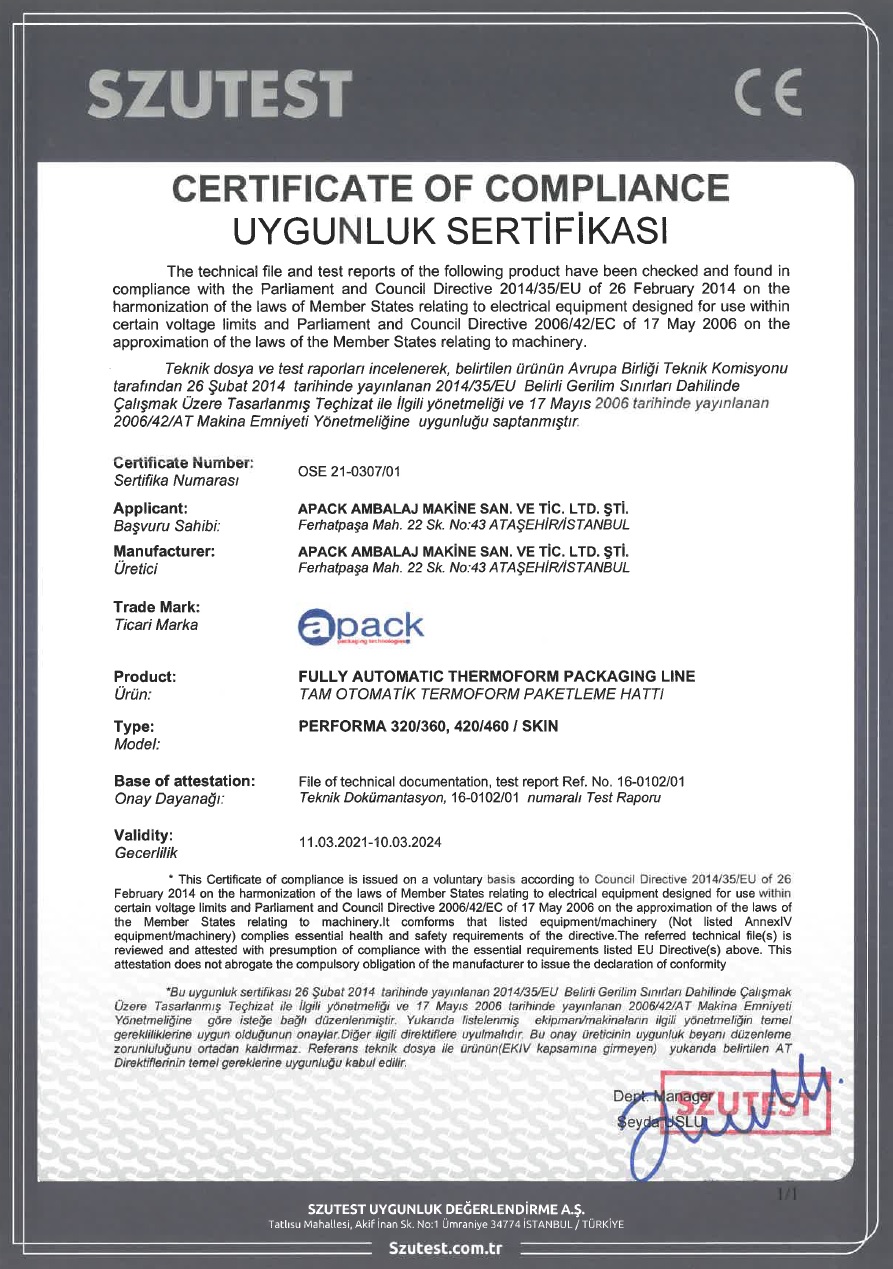

ISO 9001 CE ISO 22000-2018 ISO 13485-2016



perFORMA  MEDICAL SERIES Technical Spesifications
ENERGY AC 400V 50-60 Hz 3/N/PE
POWER Min 4.0 kW -  Max 14.0 kW
VACUUM PUMP 60-305 m³/h
PRESSURED AIR 6 Bar (Homogen Dry Air) 70Nl/cycle
GAS 6 bar

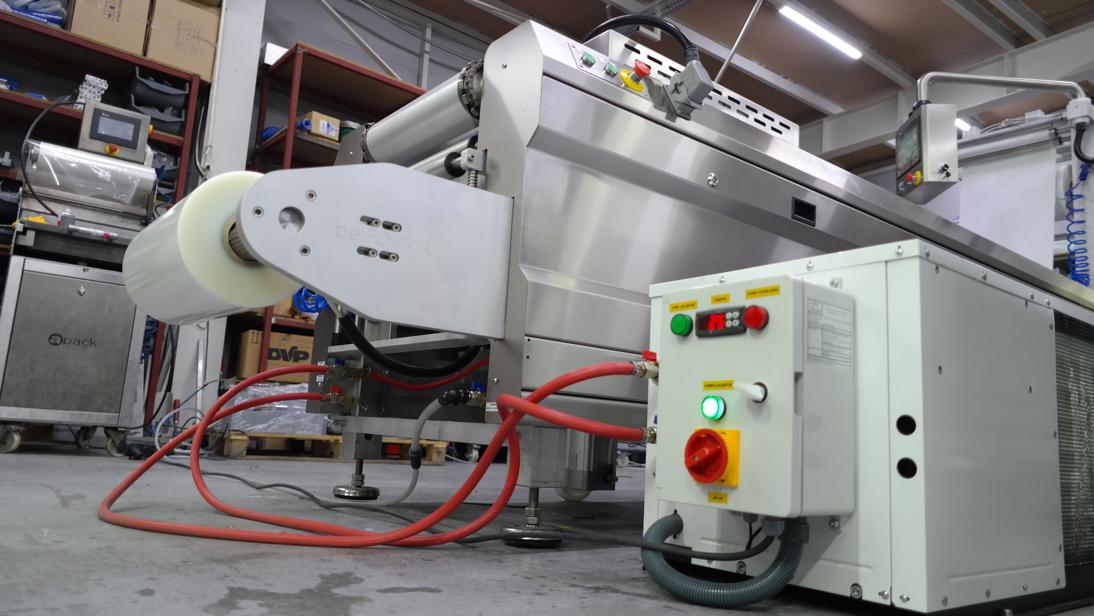

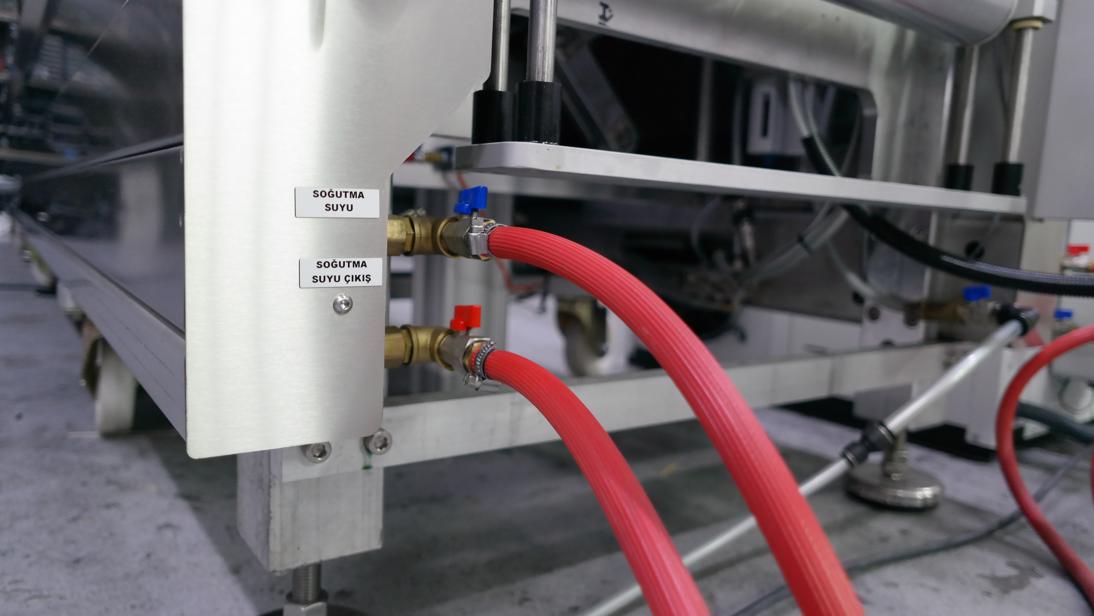

COOLING WATER (Chiller) 60-80 Lt/h  6000kCal/h

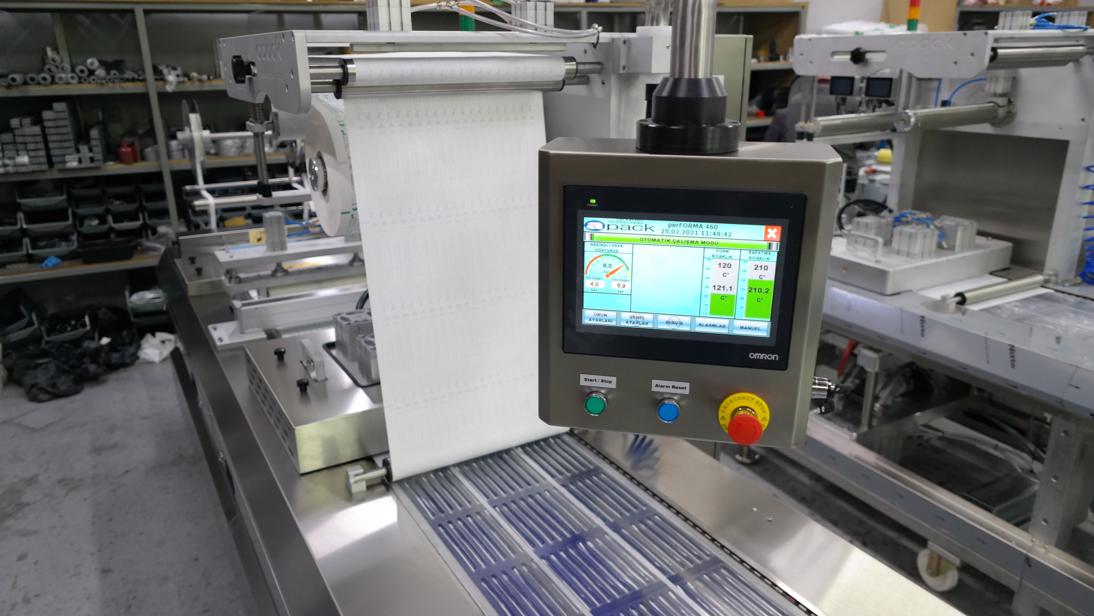

CONTROL PANEL Full Color Touch Screen PLC (Programmable Logic Control),HMI
CAPACITY 6-10 cycle/min (Vacuum and Gas)
8-12 cycle/min (Only Sealing)
BODY AISI304 Steinless Steel
OPTIONAL Liquid/Dust Filters
WEIGHT (400 Series) 2000Kg.
DIMENSIONS (400 Series) 6000x1100x2000mm.
LOADING AREA 2.0-4.0 m.
MOLD HEIGHT 90mm max.
HS Code 84 224 000 00 19
ORIGIN New / Unused / Made in Turkey

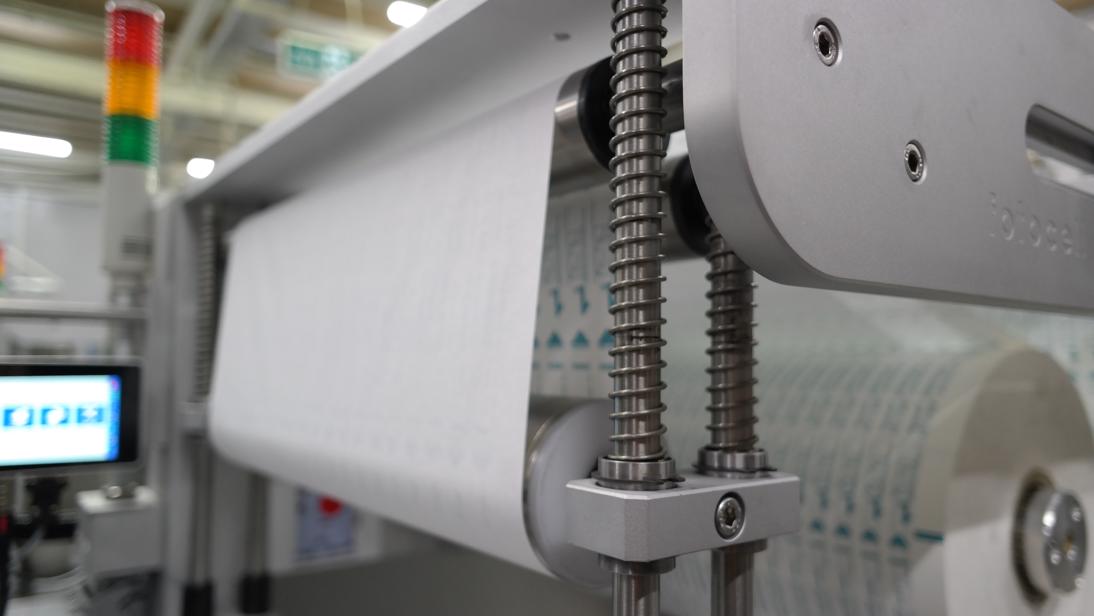

FOTOĞRAF GALERİSİ
