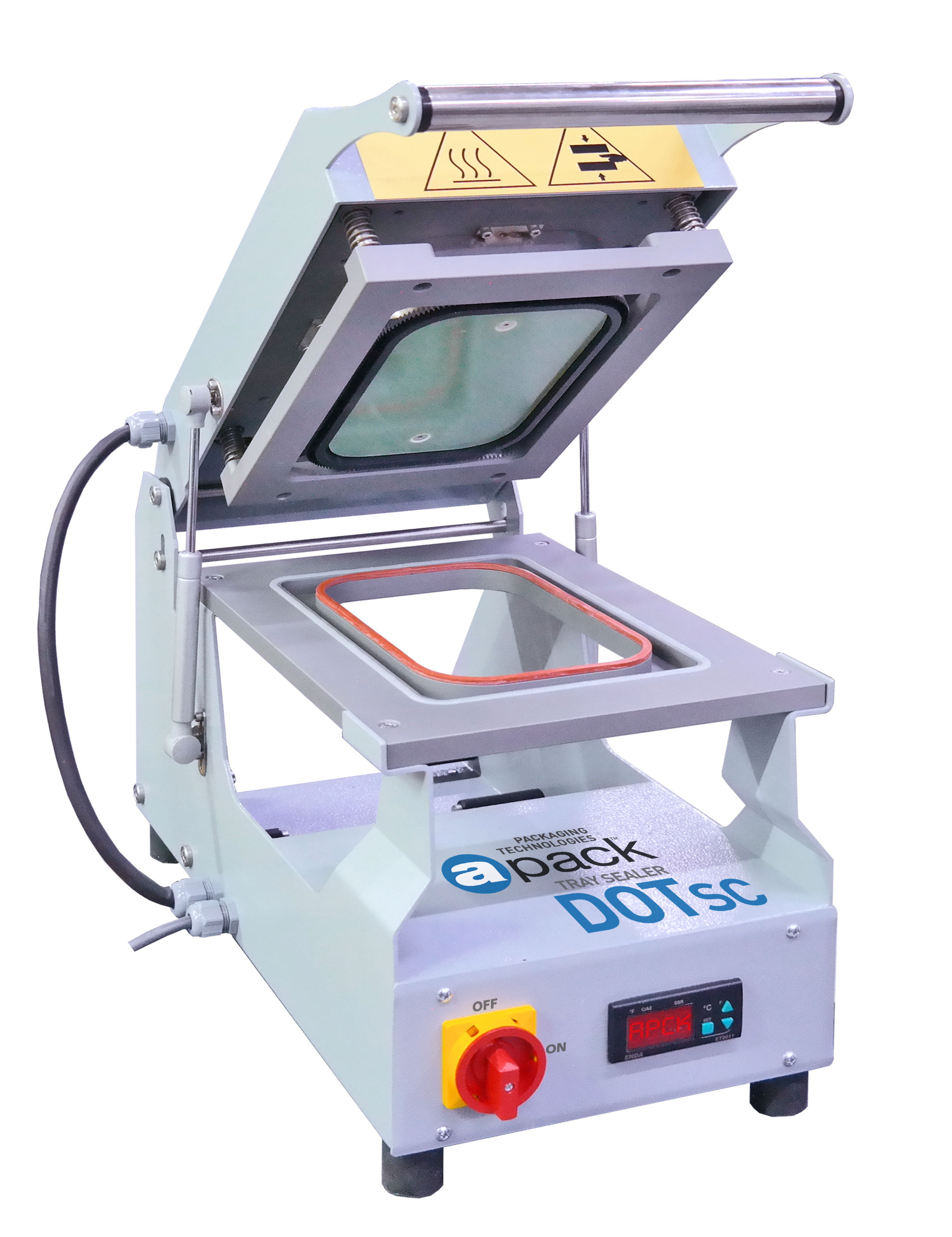

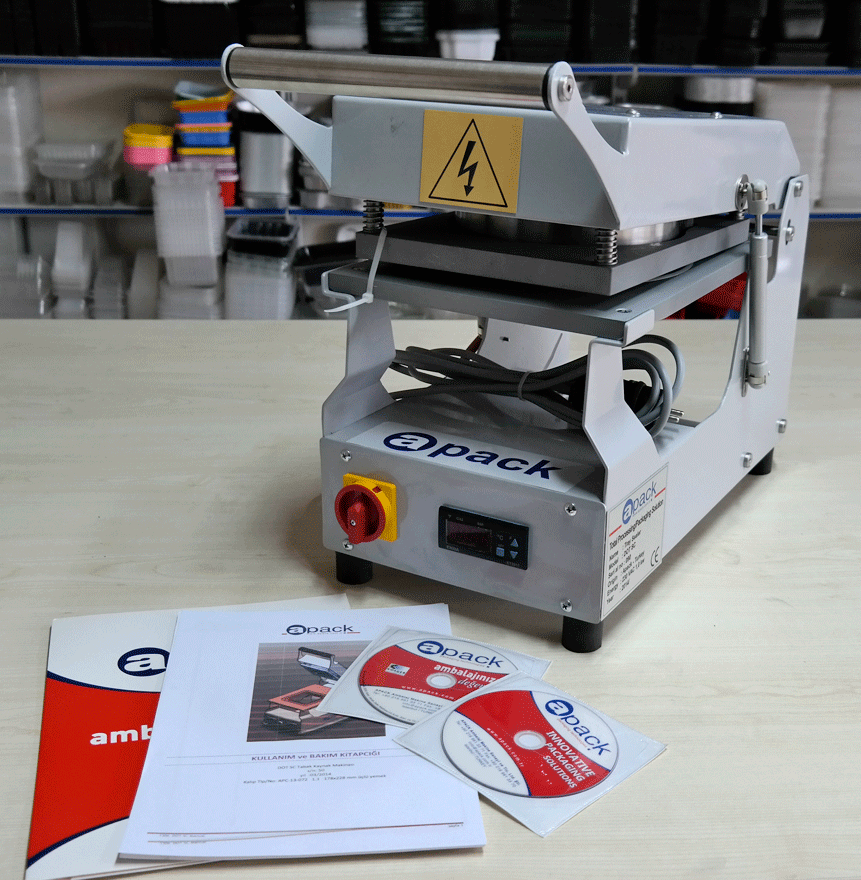

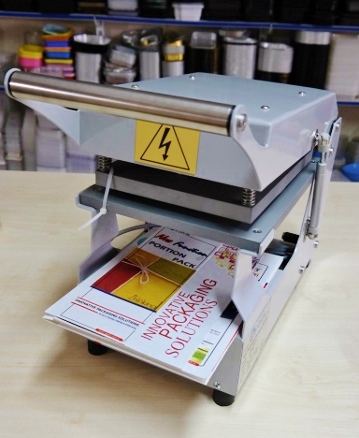

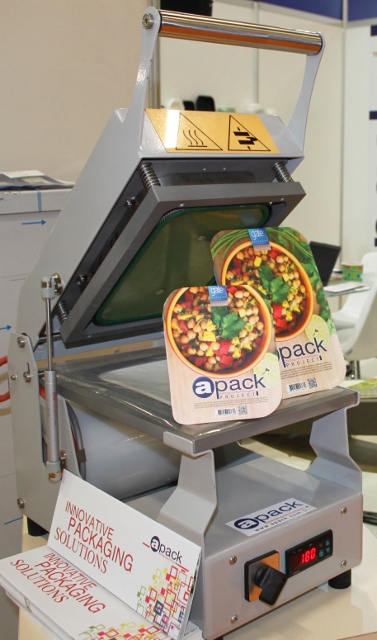

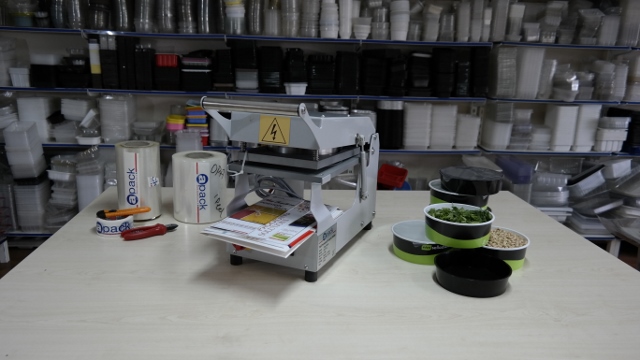

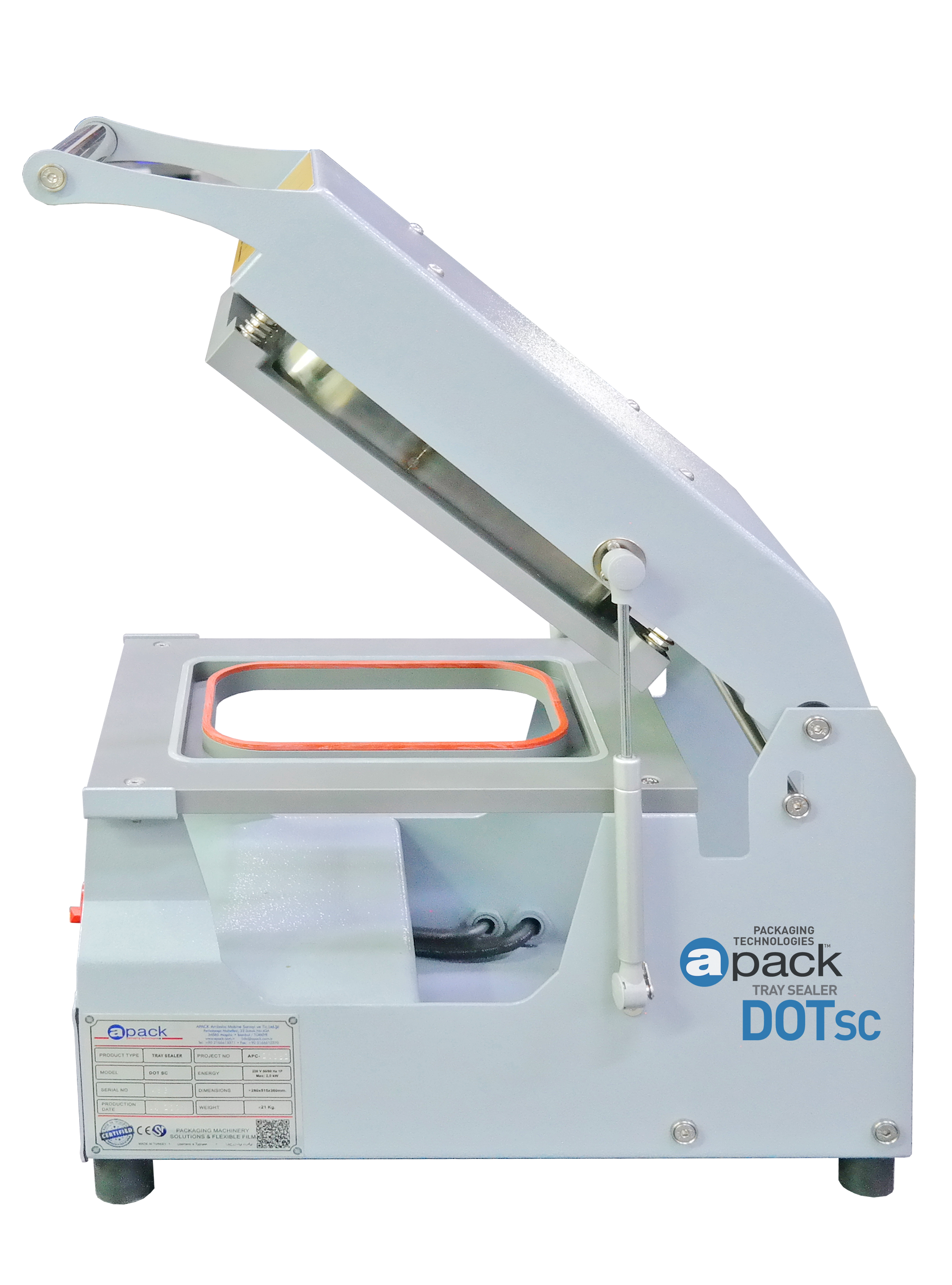

DOT SC - (Seal and Cut)

Desktop Tray Sealing Machine

(Vacuum and Gas Flush Option not appropriate)

The basic tray sealing machine DOT SC is an electrically heated, simple tray sealing machine, is used to seal an cut trays with various type packaging films. DOT Series Machines are manual type simple tray sealer which has compact design, build with stainless steel to meet the market that wants healthy, tasteful and convenient packaged in a hygienic, high-quality way.

 DOT-SC
  • Certified World Industrial Standards
  • Seal and Cut function at one step

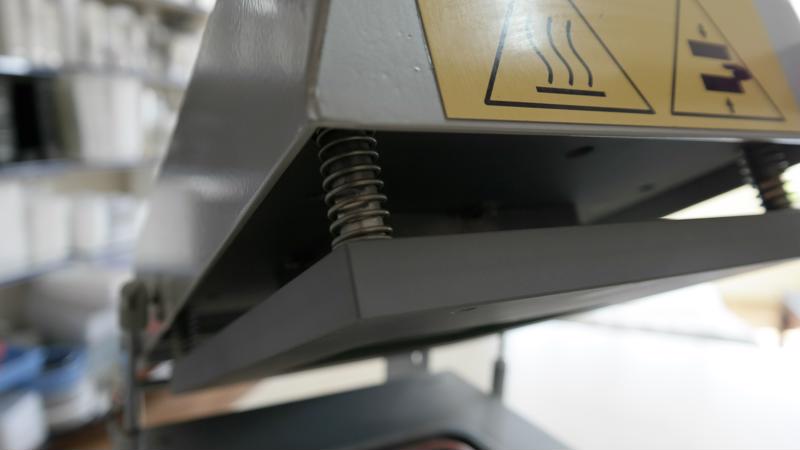

  • Isolated sealing plate

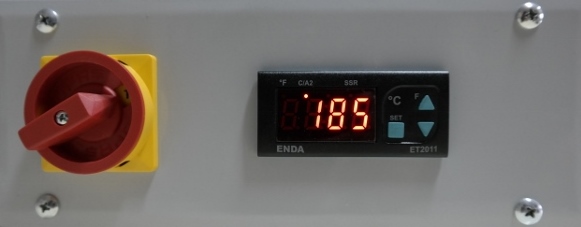

  • Digital Temperature Control Unit

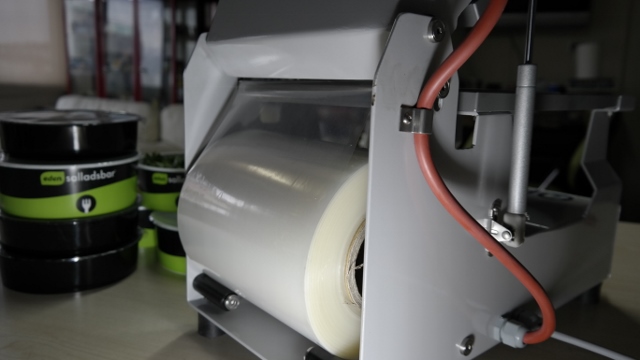

  • Film Loading Area is inside the body
  • Hygenic and compact design

The machine have skillful craftsmanship at a great value for money, which are suitable for testing market demands, low level production, fast packaging requirements, supermarkets, small kitchens and shops. DOT-SC series manual type tray sealing machines is applicable to fresh-keeping packaging of all types of boxed nutrition as fresh, cooked food, such as cool fresh meat, cooked meat products, rice, noodle, cheese, soy products, fast food, food-to-go, which can be hot, chilled or frozeen, pastry, aquatic products, dried food, poultry and other boxed foods or any kind of boxed material. It is perfect for following take-out sales.


DOT-SC Suitable for Take-away, casual dinning, meals-on-wheels, street food and cooked & chill.

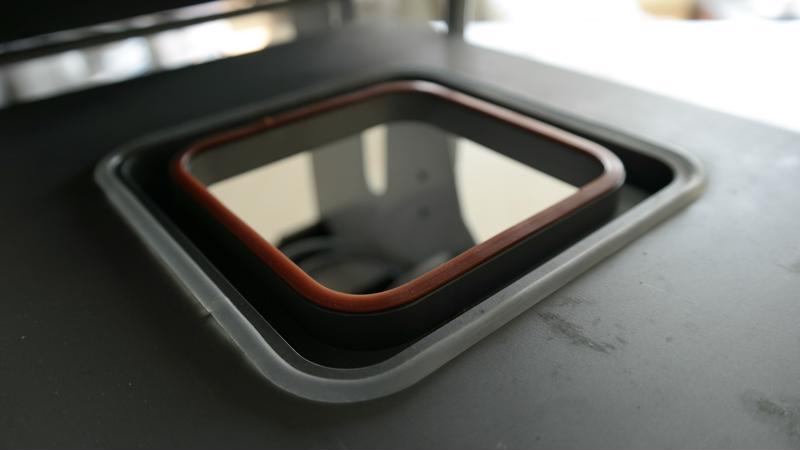

DOT-SC series sealing machines allows you easy and fast replacement of tray tools.

DOT-SC series sealing machines has stable and safe temperature control system.

DOT-SC series sealing machines allows you friendly and simple in operation for user.



DOT-SC Technical Details
POWER 1/N/PE 110-230 V 50-60 HZ
POWER CONSUMPTION 1.0 kW maximum
FILM WIDTH 220 mm.
DIMENSIONS 280x480x380 mm
WEIGHT Approx. 25 Kg.
CAPACITY                   4-8 cycle/min
CONTROL Digital Heat Controller
SEAL Seal and Cut
TRAY HEIGHT 10-100 mm.
TRAY TYPE Plastic or Paper - Single or Multi compartement
CONVENIENT
TRAY DIMENSIONS
137x187 mm.
144x190 mm.
180x230 mm.
